t-Lead: Tripolar Concentric Ring Electrode (TCRE)-based sensor

TCRE

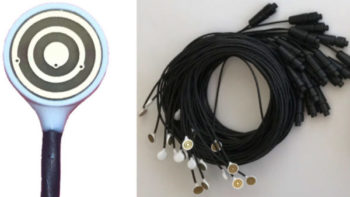

  • Each TCRE sensor consists of three electrode elements: the outer ring, the middle ring, and the center disc.
  • The outer ring of the TCRE emulates disc electrode biopotentials (eEEG).
  • Suitable for acquiring EEG in applications such as event related potentials (ERP), brain-computer interface (BCI) and seizure detection. Can also be used to acquire electrocardiography (ECG), electromyography (EMG), and other biopotentials.
  • Use with conductive paste.
  • Work in conjunction with the t-Interface.
  • Patent No. US8352012B2, US8615283B2, US8626259B2, and US9399133B2

t-Lead Specifications

Sensor Type Gold plated TCRE
Substrate FR-4 (diameter = 12 mm)
Size Outer ring diameter = 10 mm
Cable 3-conductor shielded, length = 6 ft.

t-Interface

  • The t-Interface serves to configure the TCRE electrode elements, route, and pre-amplify the signals.
  • Signals recorded with disc electrodes are known to be prone to artifacts. Incorporating the t-Leads and t-Interface into your current amplifier system improves the artifact rejection of your system, allowing for higher-fidelity biopotential signal acquisition and typically shorter acquisition times.
  • The t-Interface has been designed to be compatible with your current amplifier and software. Its outputs have standard touch-proof connectors that mate with common EEG amplifier head boxes (Biologic, BioPac, Brain Vision, Brain Products, EB Neuro, Grass/Natus, g.tec, Nihon Kohden, Neuroscan, TDT amplifiers, etc.).
  • Patent No. US8352012B2, US8615283B2, US8626259B2, and US9399133B2

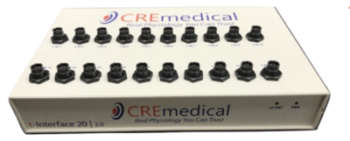

t-Interface 20-Channel

t-Interface 20
t-Interface 20

t-Interface 20-Channel Specifications

Channel Count 20 inputs (generates 40 output signals: 20 tEEG signals and 20 eEEG signals)
Input-related Noise 50 nV / √Hz at 500Hz
Input Impedance  47 kΩ – 71kΩ for 0.3Hz to 1kHz
Max Input Voltage 5 mV
Max Output Voltage 1000 mV
High Pass Filter 0.3 Hz
Output Connection 50 pin D sub mass termination connector
Power Supply  2x Lithium Ion rechargeable (24+ hours)
Weight 1.13 kg
Dimensions (l x w x h) 254 mm x 162 mm x 63.5 mm



t-Interface 2-Channel

t-Interface 20
t-Interface 20

t-Interface 2-Channel Specifications

Channel Count 2 input channels (generate 12 output signals: 6 tEEG signals and 6 eEEG signals)
Gain tEEG: 187 V/V
tEEG 5V: 22,627 V/V
tEEG 9V: 248,900 V/V
eEEG: 1 V/V
eEEG 5V: 1,331 V/V
eEEG 9V: 14,641 V/V
Input-related Noise 50 nV / √Hz at 500Hz
Input Impedance  47 kΩ – 71kΩ for 0.3Hz to 1kHz
Max input Voltage 5 mV
Max Output Voltage eEEG, tEEG ±900 mV, eEEG 5V, tEEG 5V ±5.6 V, eEEG 9V, tEEG 9 V ±9.6 V
High Pass Filter 0.3 Hz
Output Connection 50 pin D sub mass termination connector
Power Supply  2x Lithium Ion rechargeable (4+ hours)
Weight 0.5 kg
Dimensions (l x w x h) 115 mm x 75 mm x 65 mm



FOR RESEARCH PURPOSES ONLY. NOT INTENDED FOR MEDICAL USE.
